3D Printing Snap-Fit Electronics with E-Joints

For the last decade, the Maker Movement has been stuck in a bit of a rut when it comes to scale. We have 3D printers that can churn out plastic shapes, and we have soldering irons for electronics. But if you want to build something big and smart—like a robotic chair or an interactive shelving unit—you usually end up with a plastic shell stuffed with a messy bird’s nest of wires.

The problem is the “Volume-Conductivity Paradox.” Desktop 3D printers are too small to print furniture-sized objects in one go, so you have to print parts and snap them together. But while snapping plastic is easy, “snapping” a circuit is a nightmare. Connectors fail, wires break, and trying to run a cable through a 3D printed channel is a test of patience that few pass.

However, new research presented at the UIST suggests we might finally be able to ditch the wires entirely. A team from Zhejiang University has developed a method called “E-Joints” that turns the physical connectors of your object into electrical pathways, effectively letting you build life-size circuit boards that snap together like LEGO bricks.

The “E-Joint” Revolution

The core concept, detailed in the paper, borrows from ancient woodworking. The researchers utilized mortise and tenon joints—the classic “peg in a hole” method used for centuries to build barns and tables—but updated them for the digital age.

Instead of just providing structural support, these joints are the circuit. The team designed specific joint shapes (like the Linear Locking Joint and the Rotational Pivot) that maintain electrical contact even when the object is wiggled or rotated.


E-Joint: Fabrication of Large-Scale Interactive Objects Assembled by 3D Printed Conductive Parts - YouTube video

From Plastic to Metal: The Alchemist’s Touch

You might be wondering: “Isn’t 3D printed conductive filament terrible?” And you’d be right. Standard carbon-doped PLA (the plastic used in 3D printing) has very high resistance. It’s fine for a tiny capacitive touch button, but try to run a motor through it, and it will just get hot and fail.

The “E-Joint” breakthrough relies on a hybrid workflow that combines 3D printing with DIY electrochemistry.

  1. Print: The object is printed with standard plastic for the body and conductive plastic for the internal traces and joints.
  2. Plate: The printed parts are submerged in a copper sulfate bath. A current is applied, and real copper grows onto the conductive plastic traces.
  3. Assemble: The parts are snapped together. The copper-plated joints create a low-resistance metal-on-metal connection.

This process drops the resistance from the useless range of plastic down to near-bulk copper levels, allowing these 3D printed joints to power LEDs, sensors, and motors across large distances. It essentially lets makers manufacture their own custom-shaped wires inside the structure of an object.

Beyond the “Digital Twin”

This move toward integrating the material and the digital isn’t limited to dry assembly. Another standout from UIST 2024 is the Craft-Aligned Scanner (CAS).

In a project titled “Augmented Physics: Creating Interactive and Embedded Physics Simulations from Static Textbook Diagrams”, researchers combined a pottery wheel with a robotic arm and a 1D laser scanner. Instead of forcing a potter to follow a computer model, the system scans the clay as it’s being thrown on the wheel. It then generates a toolpath in milliseconds to print textures or structural supports directly onto the wet, spinning clay.

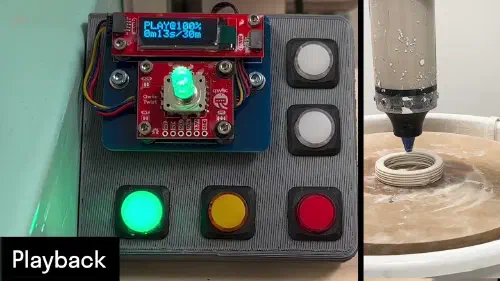

The Craft-Aligned Scanner (CAS) augments a pottery wheel to print digital textures on wet clay in real-time. Source: ACM SIGCHI YouTube.

While this is currently used for ceramics, the implication for electronics is huge. Imagine throwing a clay lamp base and having a robot immediately print a conductive silver antenna or touch sensor directly onto the curved surface before it goes into the kiln.

The Future of the “Electro-Structure”

We are witnessing a shift from “Enclosures”—dumb boxes that hold smart parts—to Electro-Structures, where the object itself is the computer.

For the garage tinkerer, this means the toolbox is expanding. It is no longer enough to know how to code Arduino and level a print bed. The modern maker needs to understand the chemistry of copper plating and the physics of joinery.

The barrier to entry is getting lower, too. On Reddit using root killer (copper sulfate) and battery acid are becoming standard knowledge in the community. Combined with parametric designs like E-Joints, we are approaching a future where you don’t buy a smart lamp; you download the file, print the joints, plate the connectors, and snap it together.
